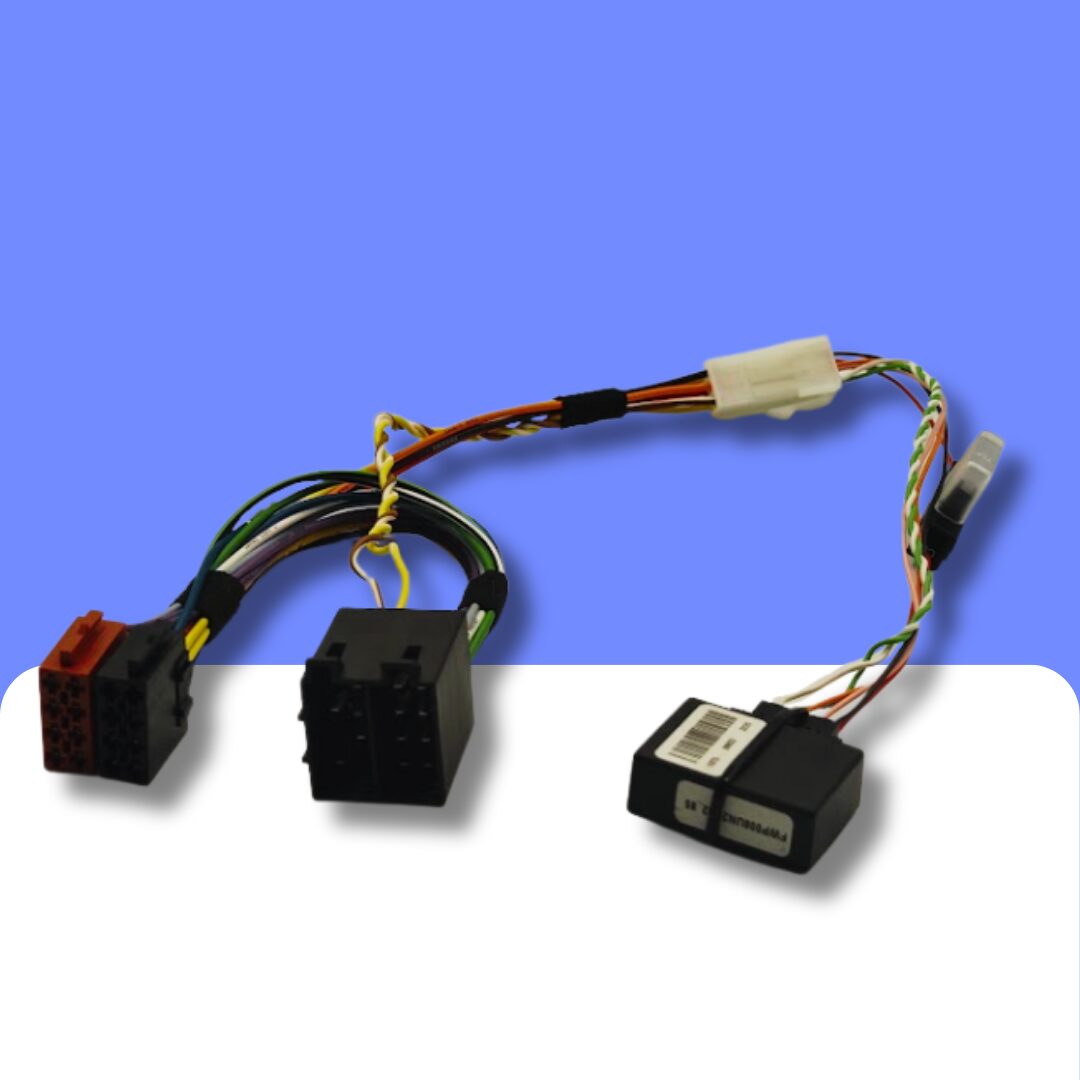

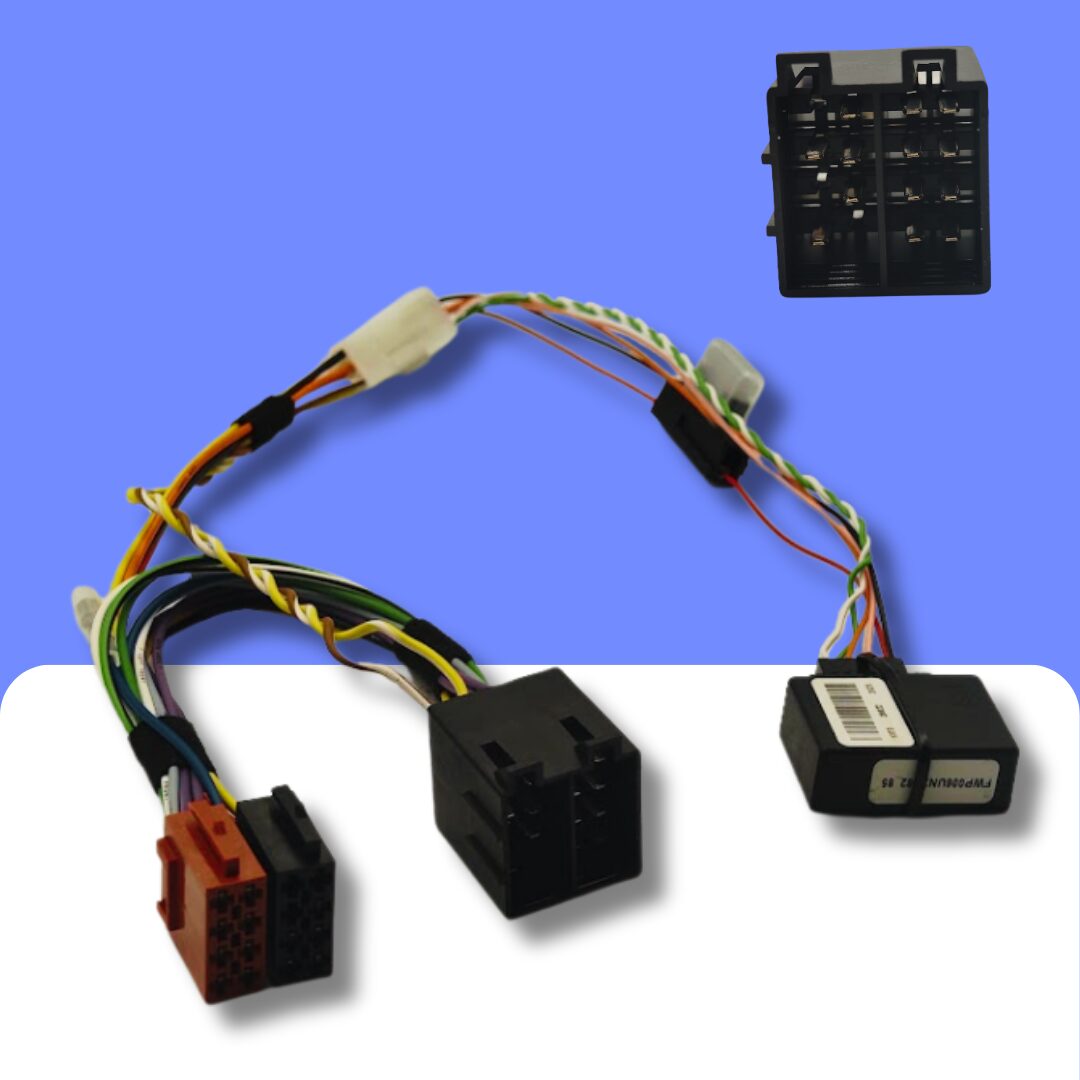

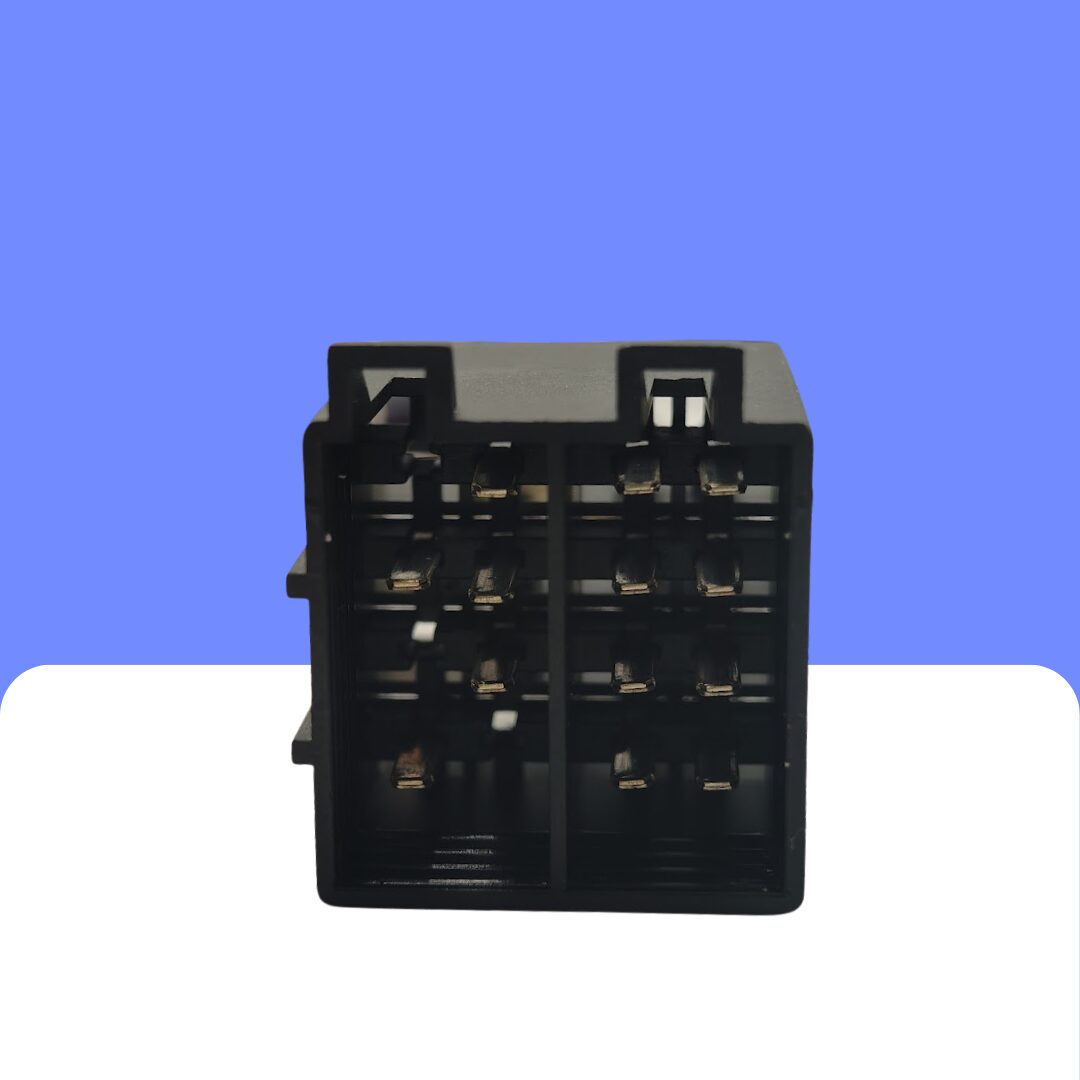

ISO adapter harness for Fiat Group vehicles with ISO connections in the back of the original radio and a CANBUS turn on for the original radio.

This harness provides 12v to an aftermarket radio when the key is turned to the ignition position and stops the odometer flashing once the original radio has been removed.

This lead has a built in CANBUS interface which provides a key present ignition power supply which will power the radio from the second position of the ignition barrel. the interface will continue to give an ignition feed to the radio when the key is turned back to the off position, the ignition feed stops only when the key is then removed from the ignition barrel. This interface also provides an illumination output to dim the radio when the headlights are on.

Compatible with the following vehicles;

Abarth
500 (2008 - 2016)
Grande Punto (2007 - 2010)
Grande Punto Evo (2010 - 2015)

Alfa Romeo:
147 (2007 - 2010)
159 (2005 - 2011) without original Magneti Marelli navigation
Brera (2005 - 2010) without original Magneti Marelli navigation
Brera Spider (2007 - 2010) without original Magneti Marelli navigation
Giulietta (2010 - 2014)
GT (2008 - 2010)
Mito (2009 - 2013)

Chrysler:
Delta (2010 - 2014)
Ypsilon (2011 - 2014)

Citroen:
Nemo (2008 - 2017)

Fiat:
500 (2008 - 2016)
Bravo (2007 - 2014)
Croma (2005 - 2007)
Doblo (2001 - 2010)
Doblo (2010 - 2015)
Doblo (2015 - 2021)
Ducato (2006 - 2014)
Fiorino (2008 onward)
Grande Punto (2006 - 2010)
Grande Punto Evo (2010 - 2015)
Idea (2004 - 2007)
Panda (2004 - 2012)
Panda (2012 - 2023)
Punto (2003 - 2006)
Qubo (2009 - 2020)
Scudo (2007 - 2012)
Stilo (2002 - 2007)

Ford:
Ka (2009 - 2016)

Lancia:
Delta (2008 - 2014)
Musa (2004 - 2012)
Ypsilon (843) (2003 - 2011)
Ypsilon (846) (2011 - 2015)

Peugeot:
Bipper (2009 - 2017)
