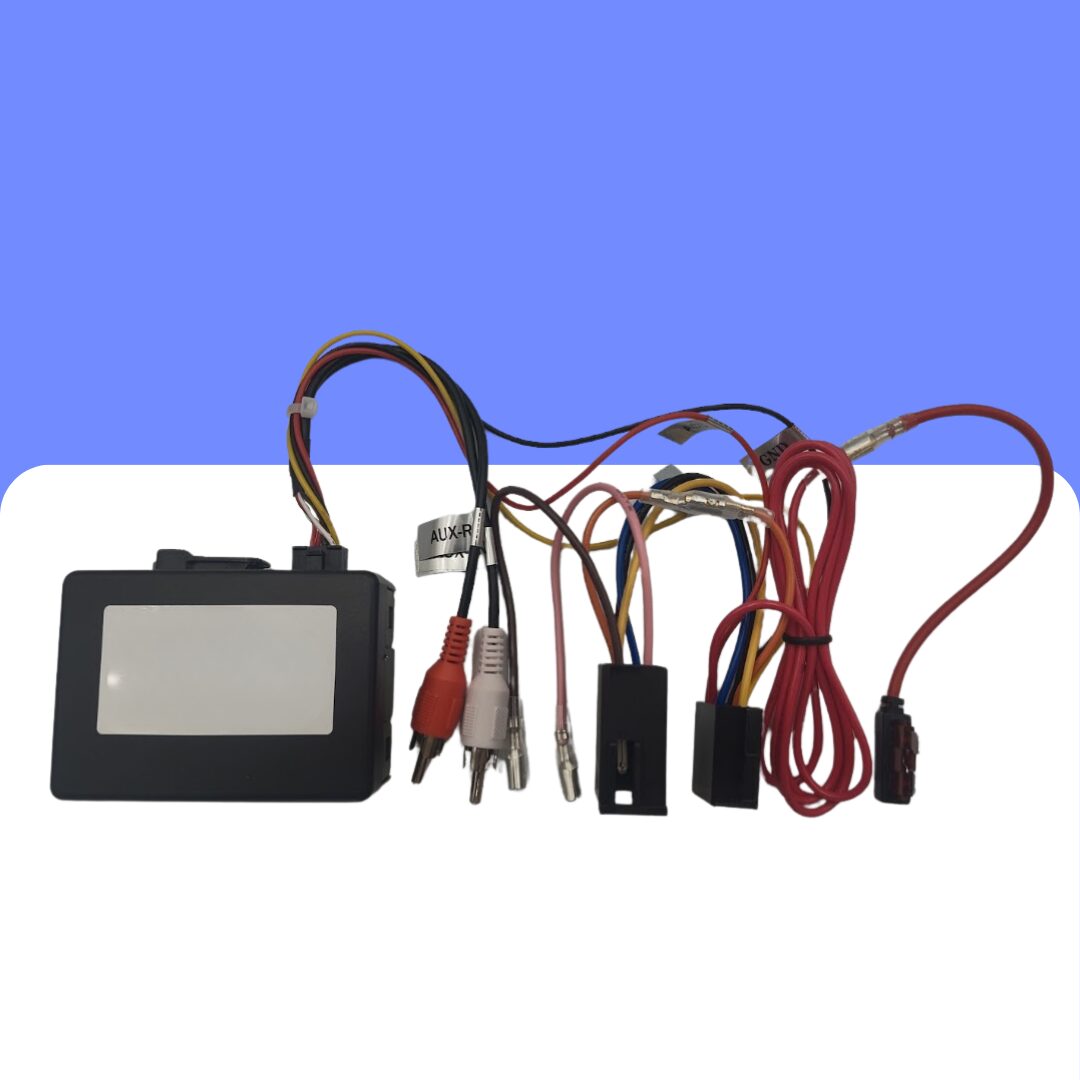

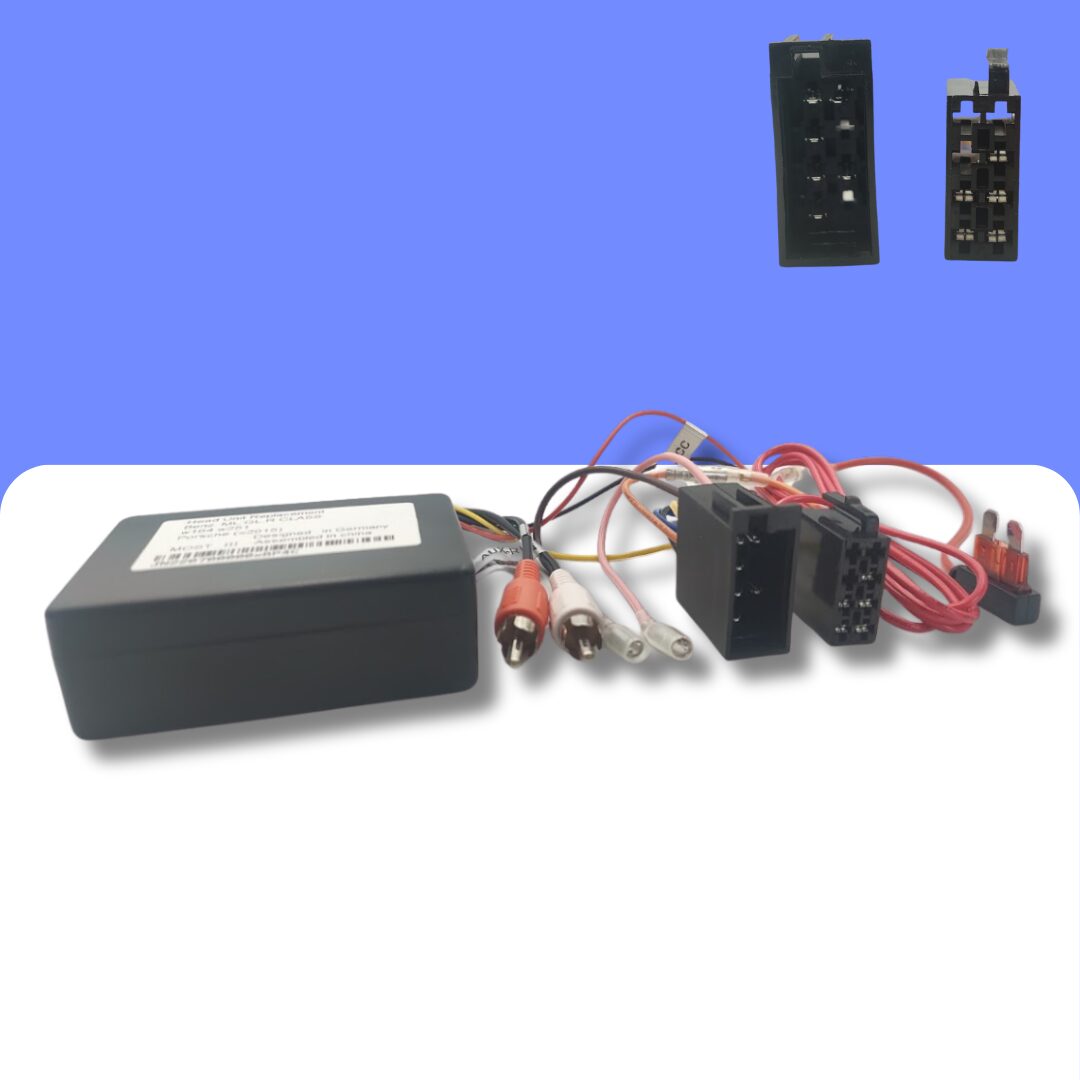

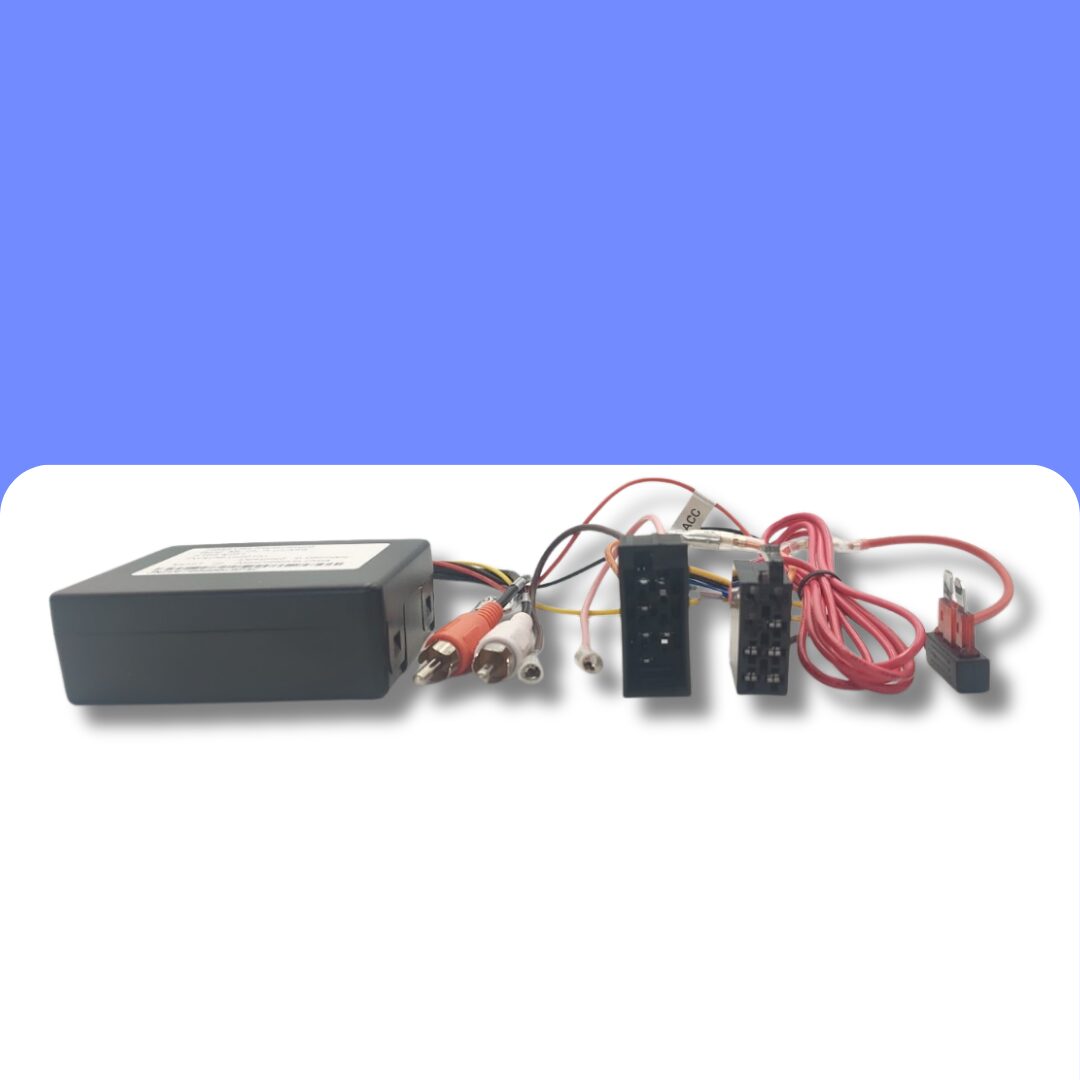

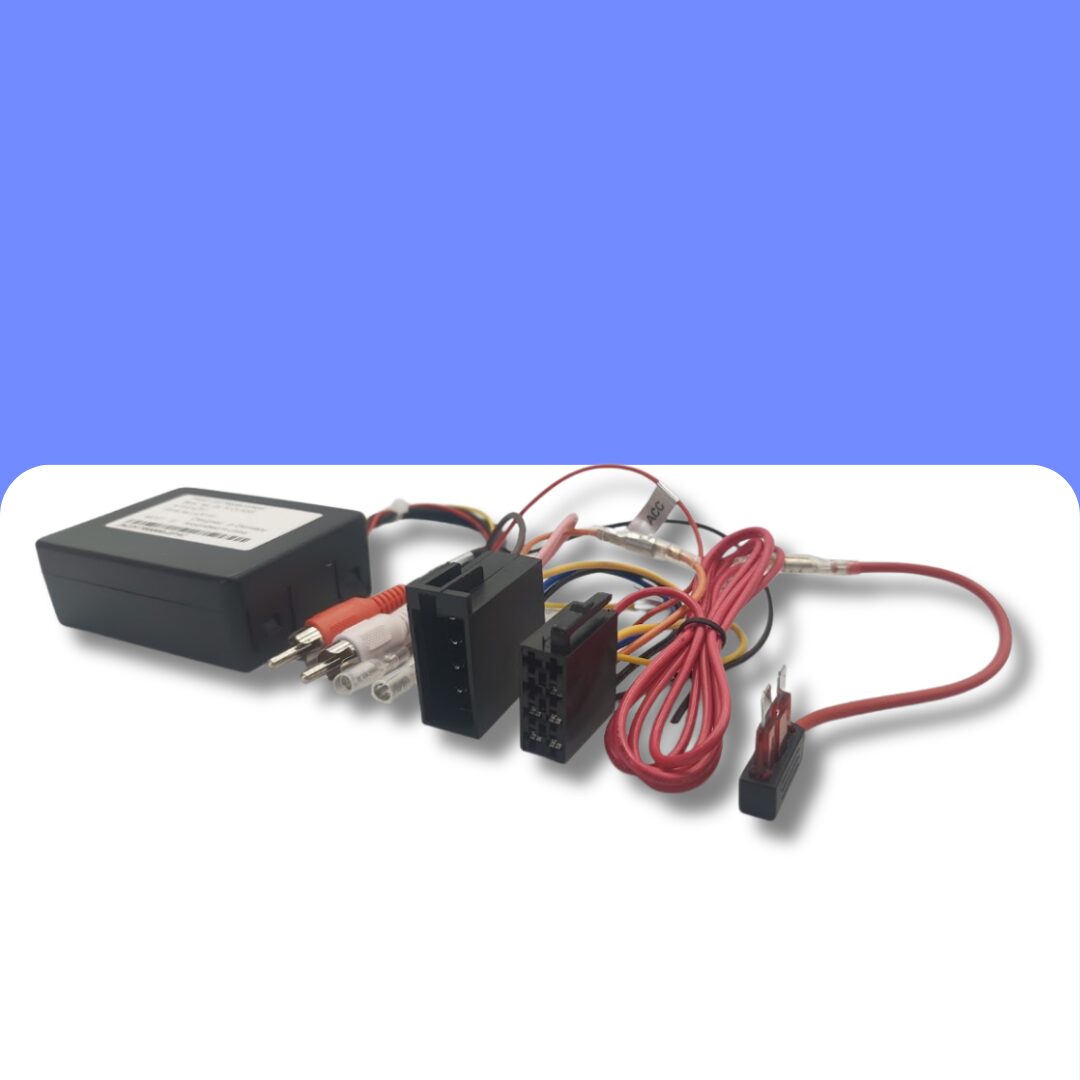

Porsche 911 (996) and Boxster (986) Fiber Optic Amplifier Interface with ISO cable
£198.99
Part Number: ISO-POR-04A
This cable is suitable for both 996 and 986 Porsche 911 and Boxster models, the fibre optic amplifier is mostly found on later model cars. These can be identified by having only 4 wires in the yellow connector in the back of the original radio. Models with a traditional style amplifier which this cable is not compatible with have 6 wires in the yellow connector. This interface also provides a speed pulse and reverse output, which are useful when fitting navigation units and reverse cameras.
This cable includes a fused power cable that can be run to the fuse box on vehicles without a switched live in the original radio wiring, keeping the installation as close to plug and play as possible without having to cut into original wiring. Please check the compatibility list carefully, including the original radio type before ordering for these vehicles.
SUITABLE ONLY FOR CARS WITH A FIBRE OPTIC AMPLIFIER.
This cable is suitable for both 996 and 986 Porsche 911 and Boxster models, the fibre optic amplifier is mostly found on later model cars. These can be identified by having only 4 wires in the yellow connector in the back of the original radio. Models with a traditional style amplifier which this cable is not compatible with have 6 wires in the yellow connector. This interface also provides a speed pulse and reverse output, which are useful when fitting navigation units and reverse cameras.
This cable includes a fused power cable that can be run to the fuse box on vehicles without a switched live in the original radio wiring, keeping the installation as close to plug and play as possible without having to cut into original wiring. Please check the compatibility list carefully, including the original radio type before ordering for these vehicles.
SUITABLE ONLY FOR CARS WITH A FIBRE OPTIC AMPLIFIER.
Compatible with the following vehicles:
Porsche:
911 (996) (1997 - 2004)
Boxster (986) (1996 - 2004)
Please note that if fitting some Chinese built units, the voltage from the pre out RCAs that this interface requires is too low and creates poor sound quality. This is found on the Chinese brands of radio and some lower specification sets from the Japanese brands such as Pioneer, Kenwood, JVC, Sony and Alpine. In these instances you will need an adjustable adapter to connect to the pre-amplified speaker outputs on the radio and then adjust the adapter until you have a good mix of volume control and sound quality. We sell a suitable adapter here.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 35 × 10 cm |
| Part Type | Amplifier Adapters/Bypasses |
| Brand | PH Auto |
| Part Category |
