Reverse Camera input adaptor for 2014 onward Mazda cars with a 7" MZD screen.

Compatible with cars with an original colour 7" touchscreen MZD infotainment system. These are known as MZD or Mazda Connect infotainment.

Enables connection of an aftermarket 6 volt NTSC camera to the vehicles OEM screen. A 12v camera can be used but should be powered from an ignition circuit elsewhere on the vehicle. Note that on Mazda MX-5 (ND) and Fiat/Abarth 124 vehicles, the 6v power outputs will not function and it would be better to use a 12v camera on these cars.

No coding is required and once connected the vehicle will recognise the presence of a reverse camera after an ignition cycle. Find instructions for this product here.

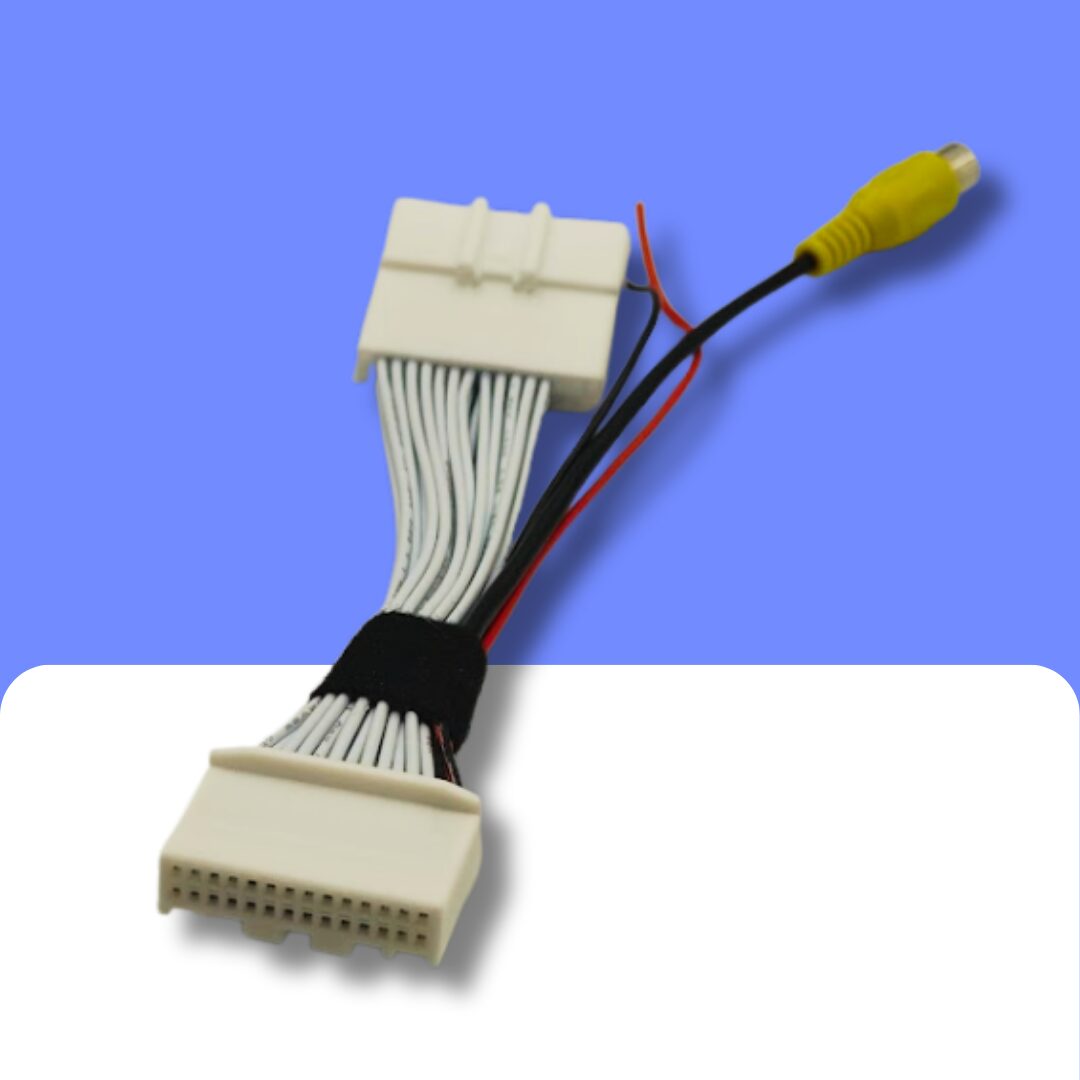

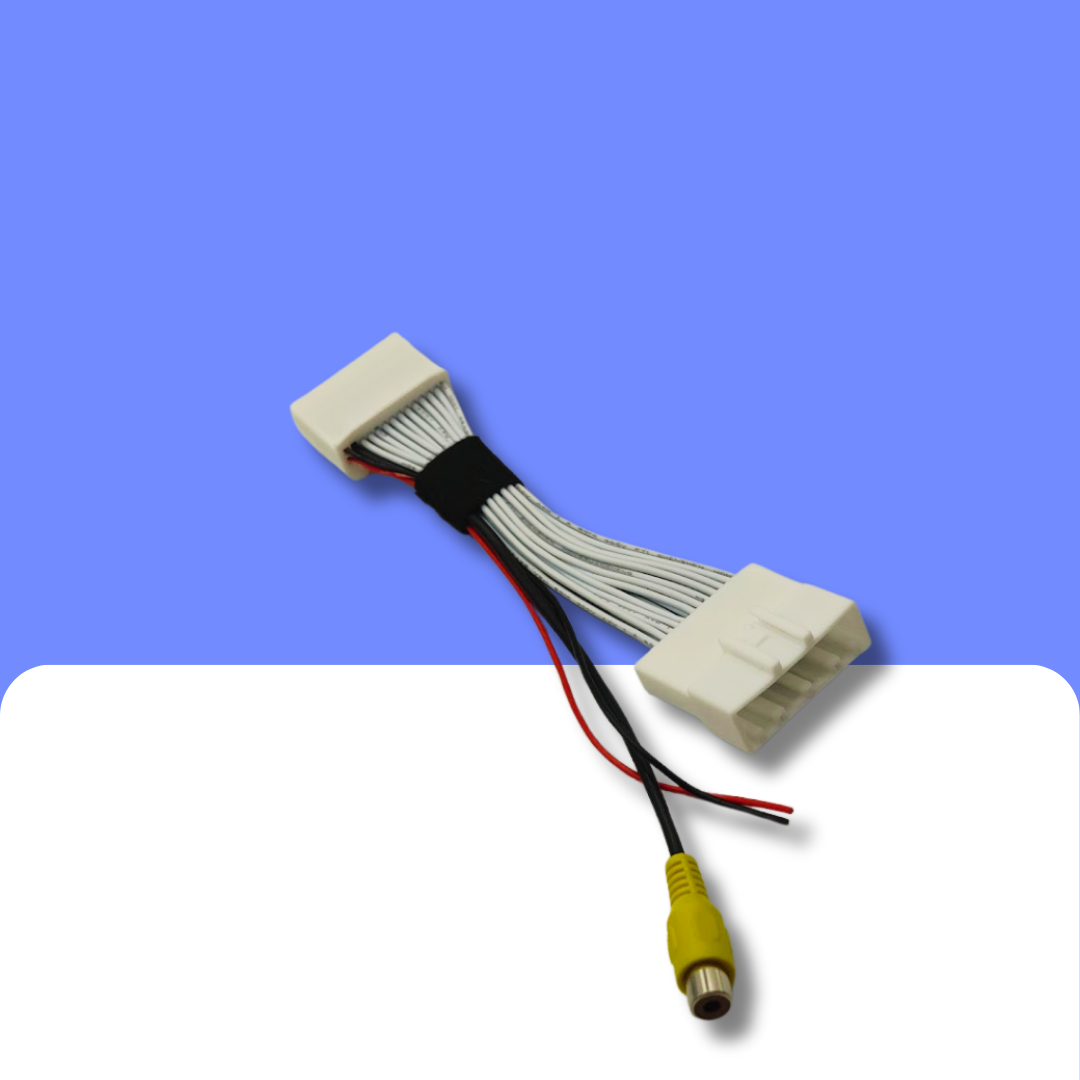

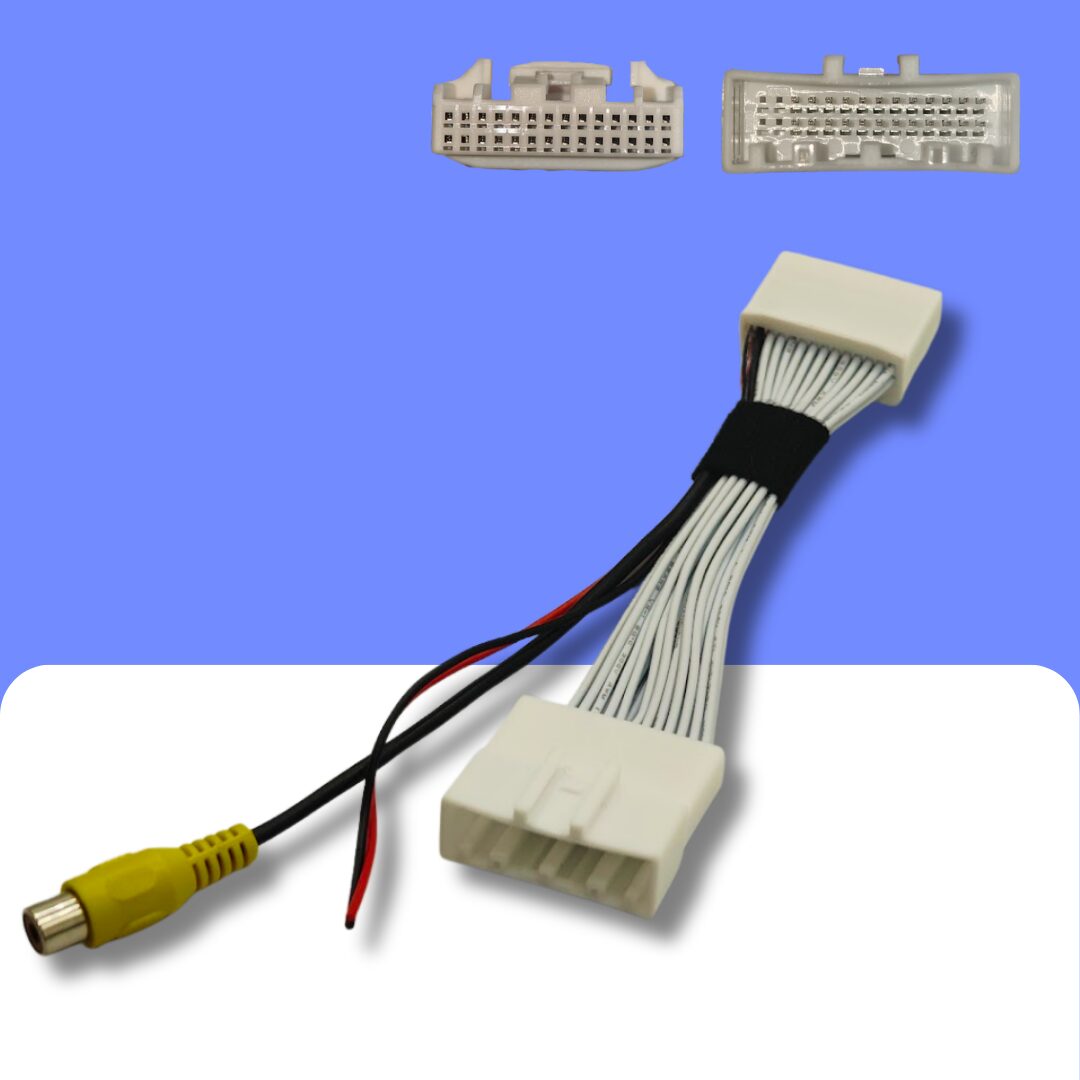

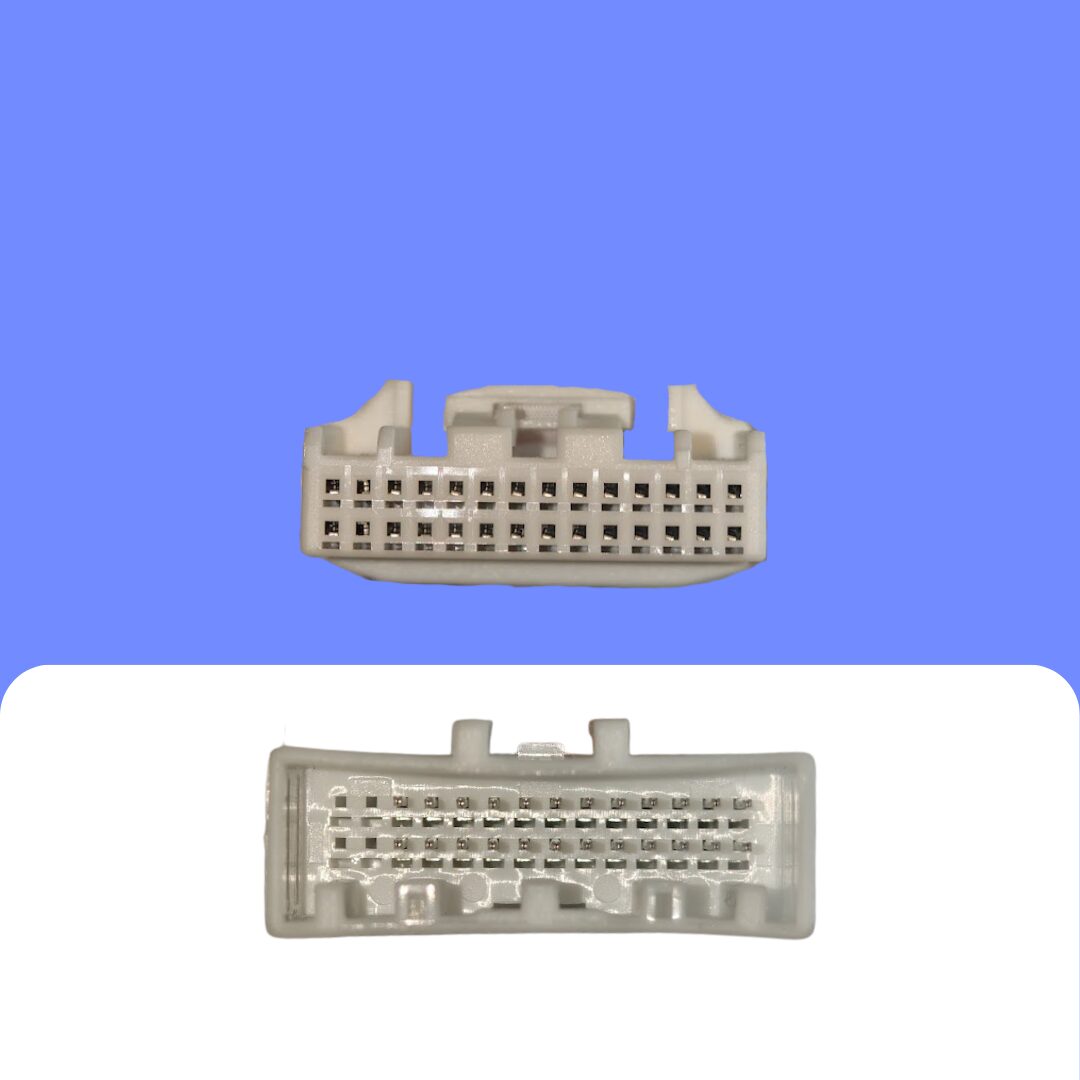

The adaptor has an 28 pin male and female connector with a RCA Phono camera input.

Suitable for the following vehicles:

Abarth:
124 Spider (2017 - 2022)

Fiat:
124 Spider (2014 - 2021)

Mazda:
2 (DJ) (2014 Onward)
3 (BM/BN) (2013 - 2018)
6 (GJL) (2015 - 2023)
CX-3 (DK) (2016 Onward)
CX-5 (FK) (2017 Onward)
CX-9 (TC) (2015 Onward)
MX-5 (ND) (2014 Onward)

Scion:
iA (2015 - 2016)
