Reverse Camera input adaptor for 2014 to 2022 Toyota Aygo, Peugeot 108 and Citroen C1 car models.

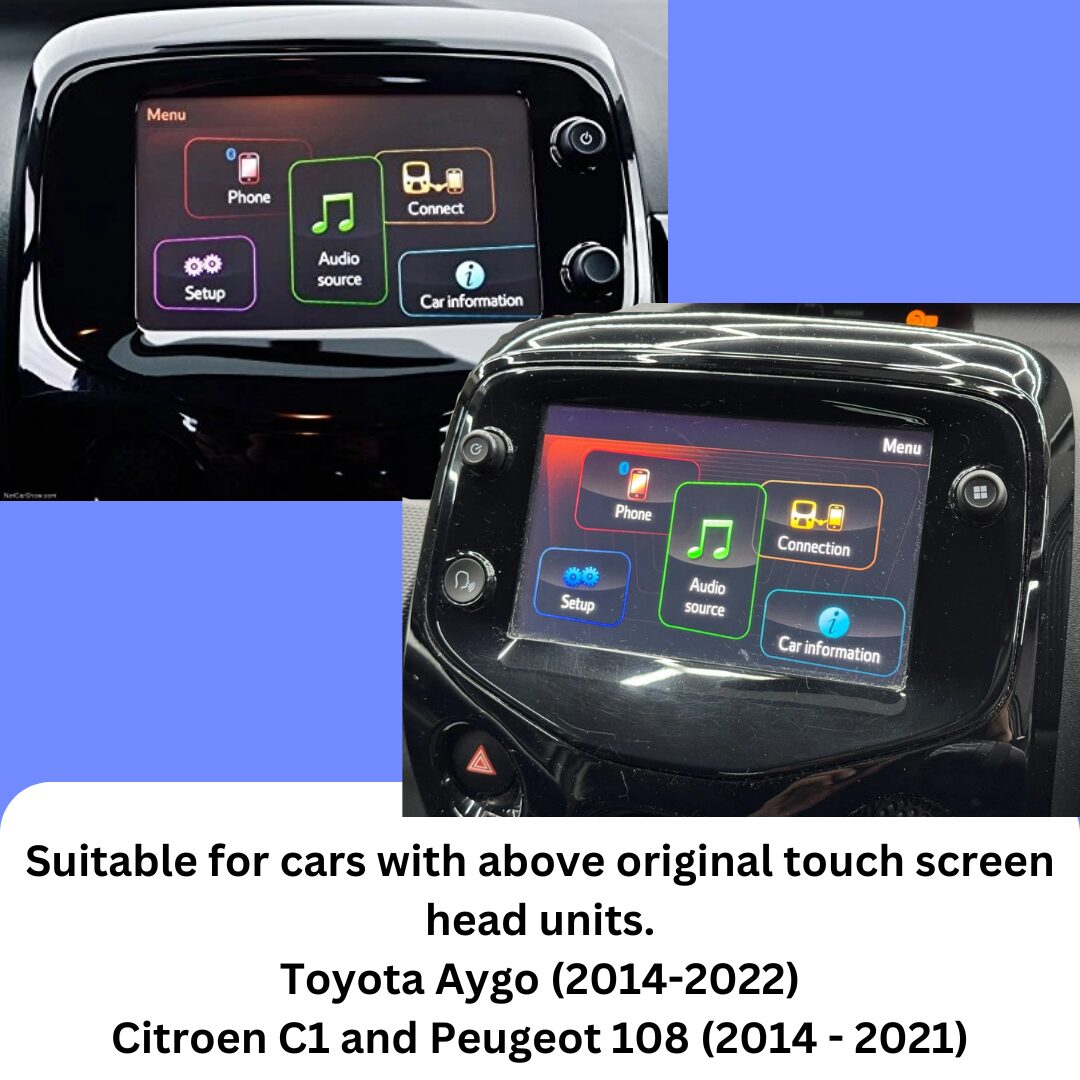

Compatible with cars with an original colour touchscreen infotainment system. These are known as X-Touch, X-Nav or Triple Play.

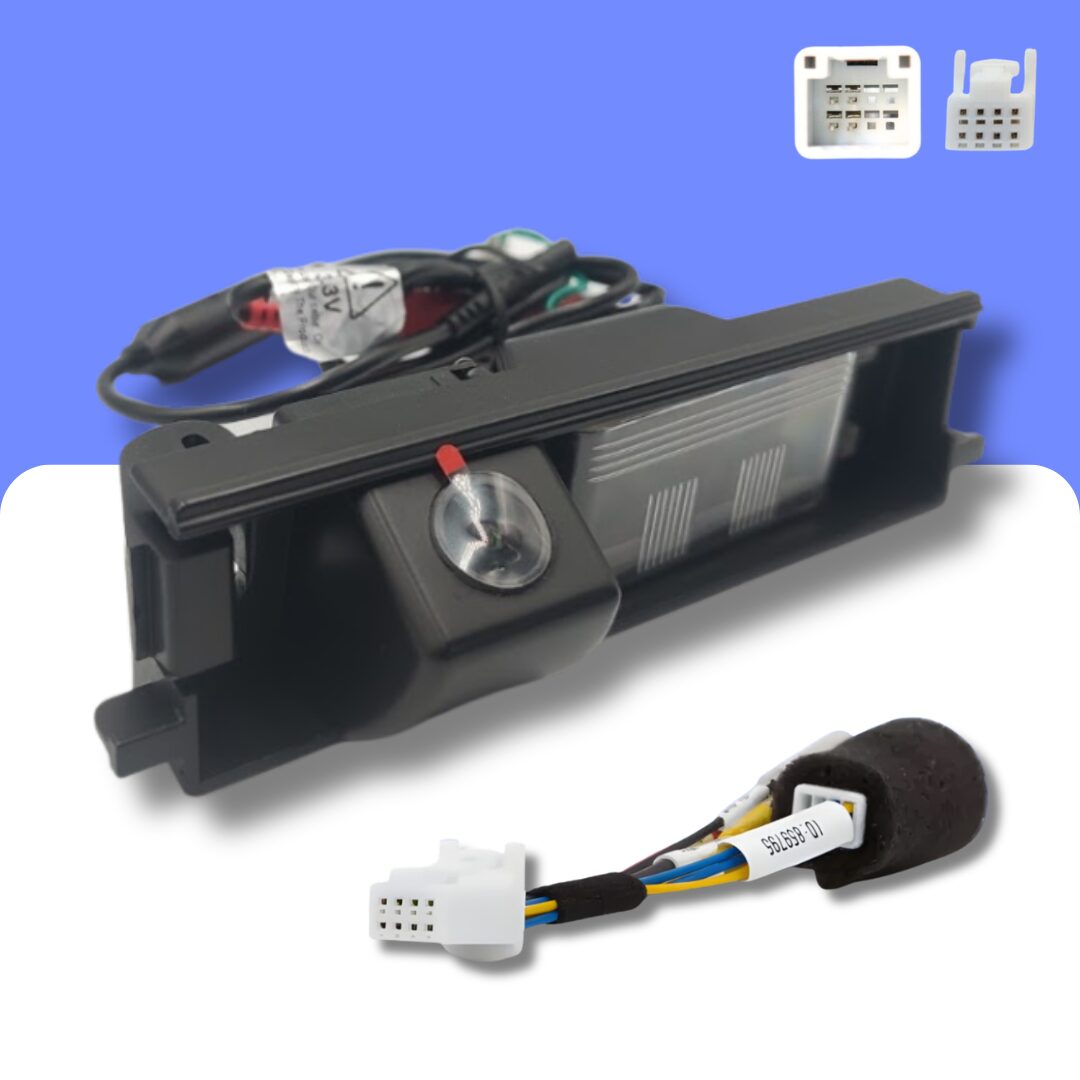

This kit consists of an NTSC camera built into a replacement number plate light lens, power and video cables to run the length of the vehicle and an 8 pin reverse camera adapter harness to connect the camera feed directly to the rear of the original screen. The harness provides 6v power outputs to power the camera, but the camera is capable of running from a 6v or a 12v power source which we recommend using as  the camera must be powered before the screen when the car is started otherwise it will not turn on the reverse camera view.

The camera comes fitted to the numberplate light housing, and the original number plate light bulb and bulb holder needs to be used.

No coding is required and once connected the vehicle will recognise the presence of a reverse camera after an ignition cycle.

The adaptor has an 8 pin male and female connector with a RCA Phono camera input.

Suitable for the following vehicles:

Citroen:
C1 (2014 - 2021)

Peugeot:
108 (2014 - 2021)

Toyota:
Aygo AB40 (2014 - 2022)
