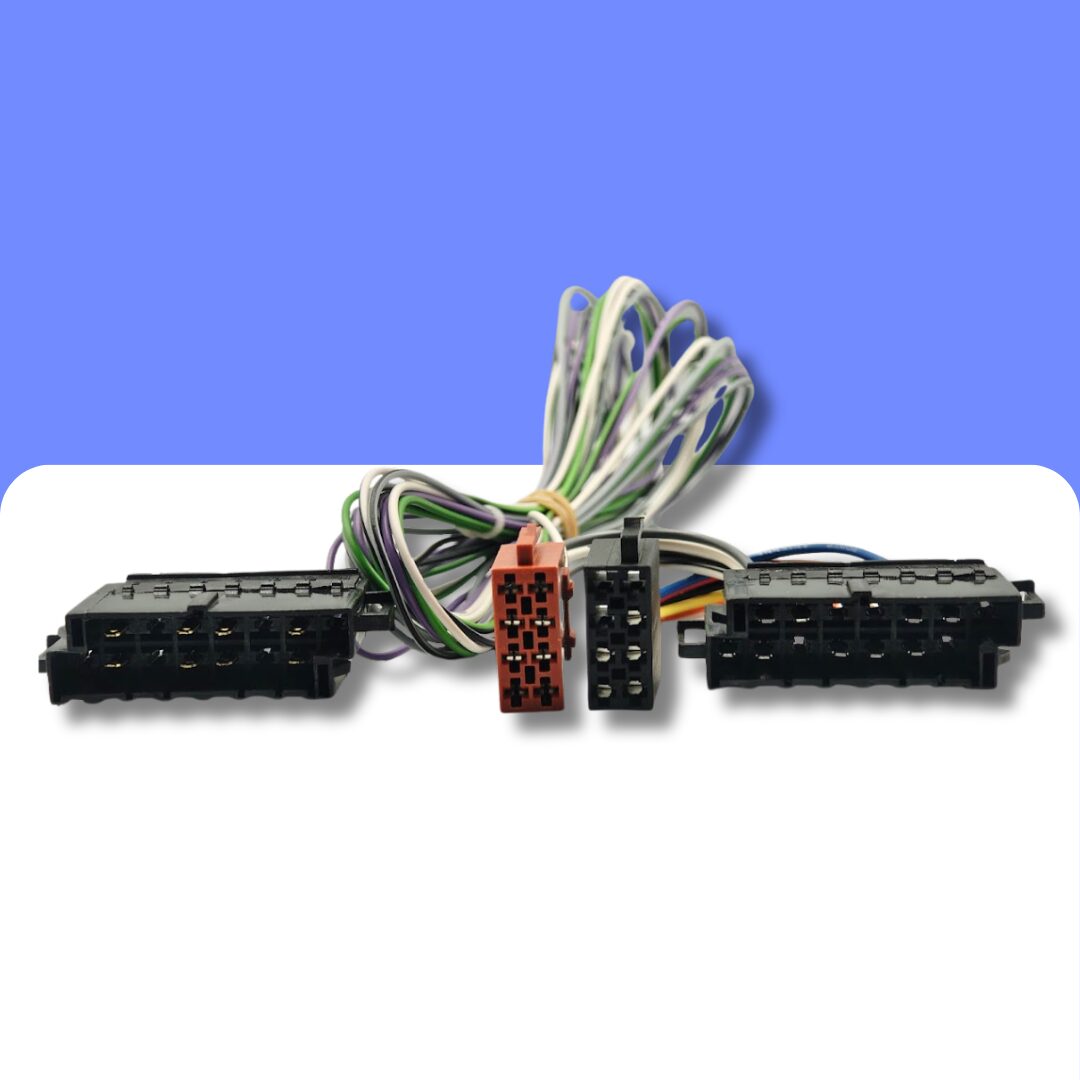

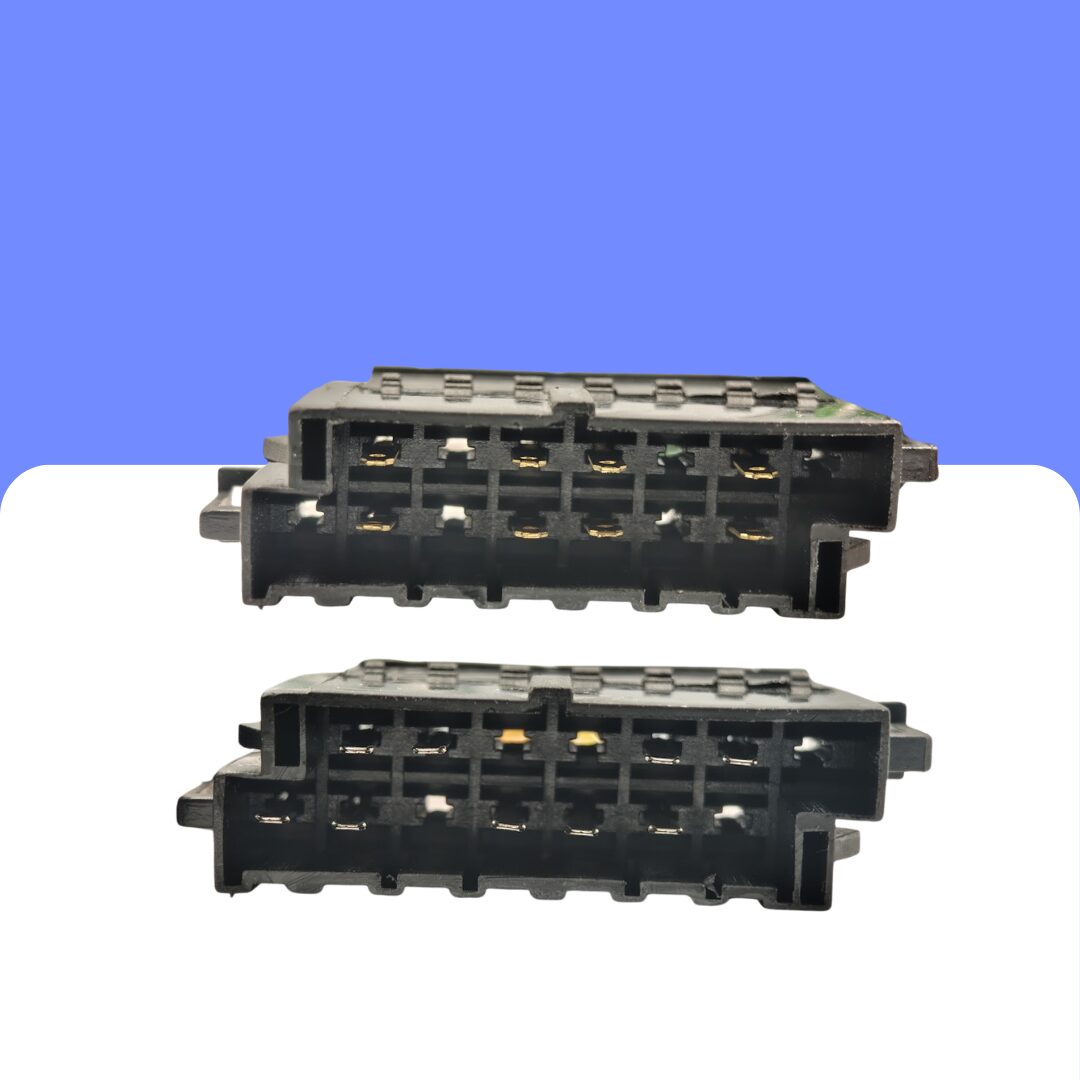

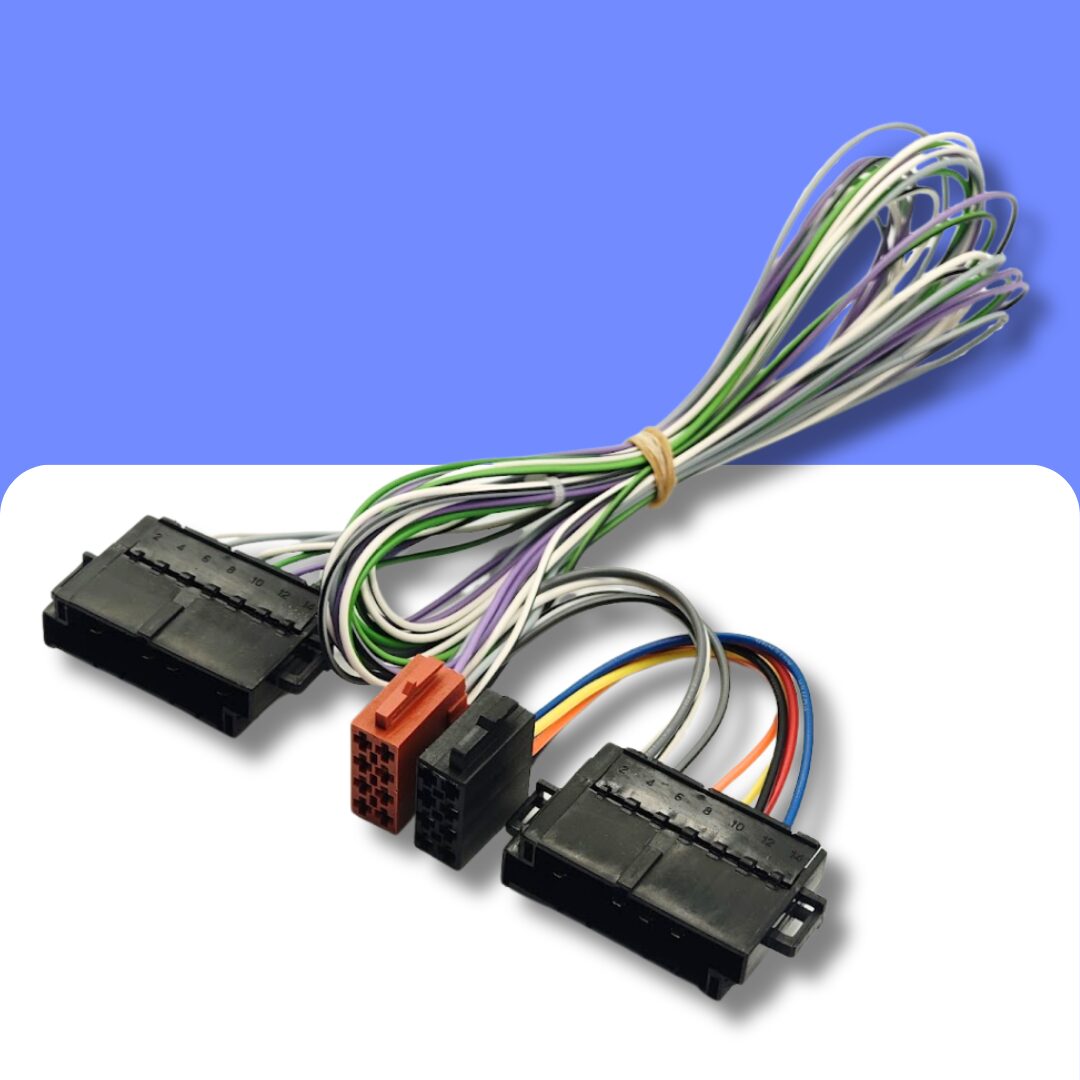

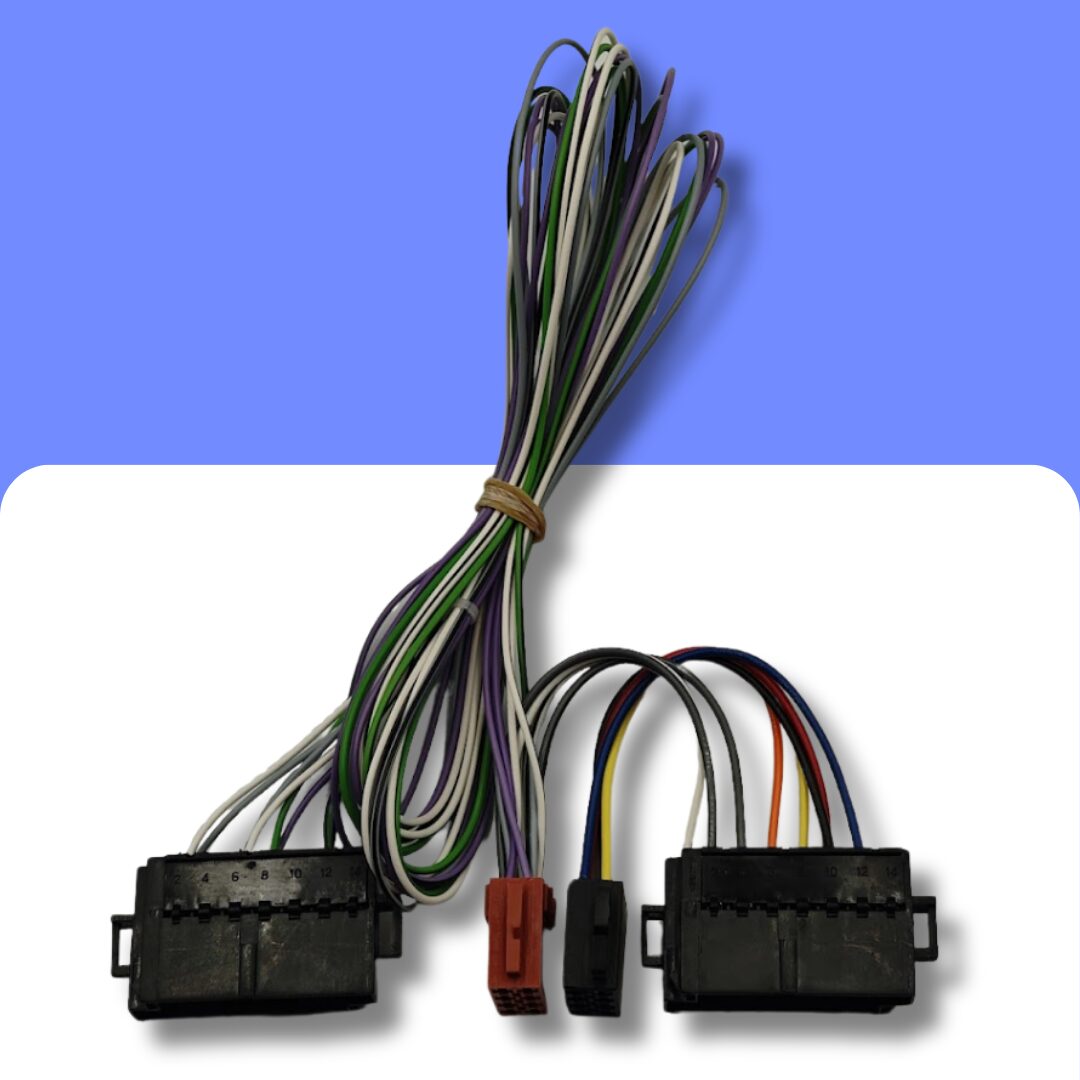

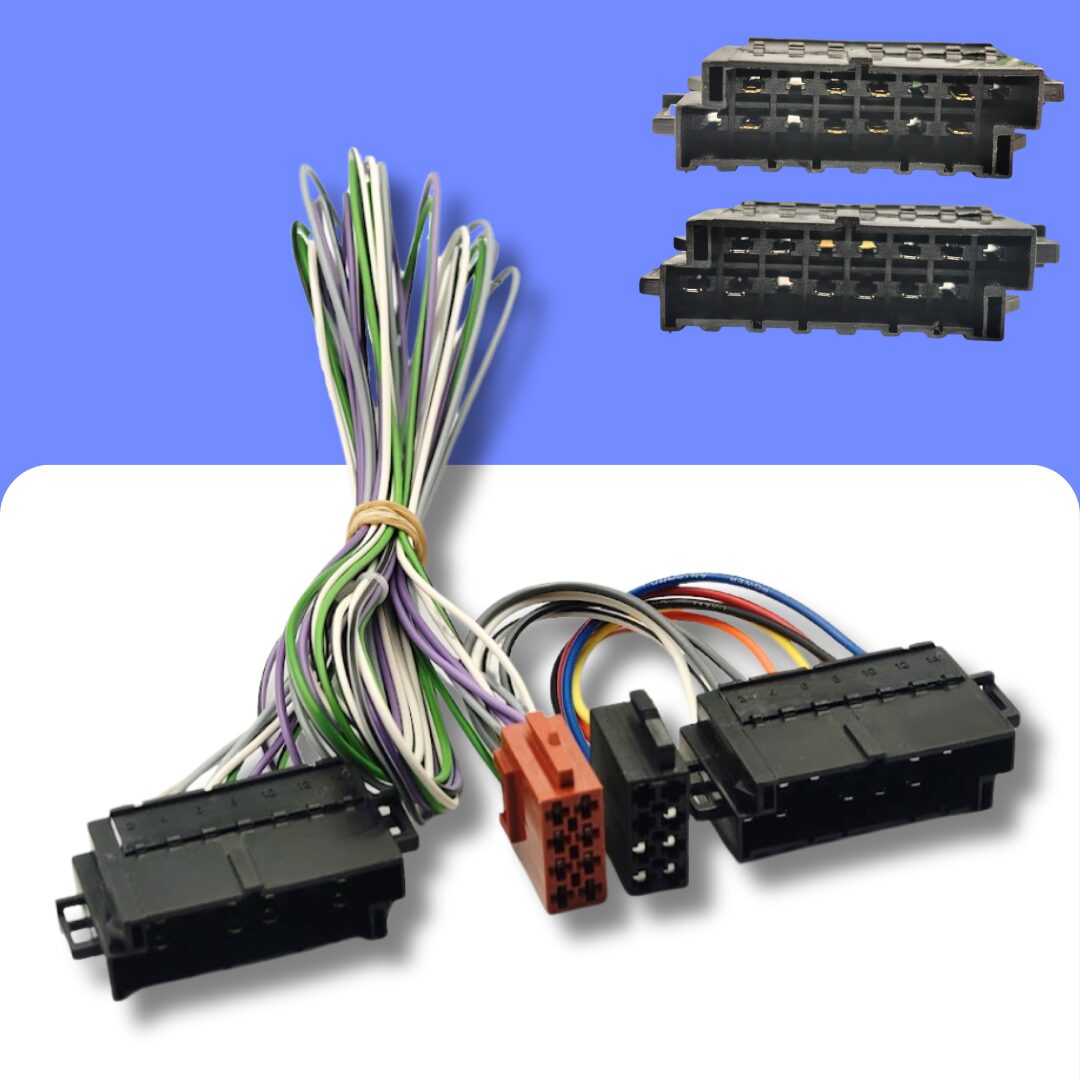

Amplifier bypass cable for Volvo cars built between 1982 and 1994 with a six speaker amplified sound system.

Allows you to connect a new aftermarket radio directly to the cars speakers after bypassing the original amplifier while retaining the original speakers. This cable provides power and speaker outputs for the new radio.

The original Volvo amplifier is located behind the dashboard on most models, but does vary on exact location. This cable is only suitable for cars built between 1982 and 1994 with a 6 speaker amplified system, not suitable for cars with an original 4 speaker non-amplified system.

This is not suitable for retaining the original radio on cars where the original amplifier has failed, it is only for use with an aftermarket radio with a built in amplifier.

Compatible with the following vehicles with an original 6 speaker sound system:

Volvo:
740 (1990 - 1992)
760 (1982 - 1990)
850 (1992 - 1993)
940 (1990 - September 1994)
960 (1990 - 1993)
