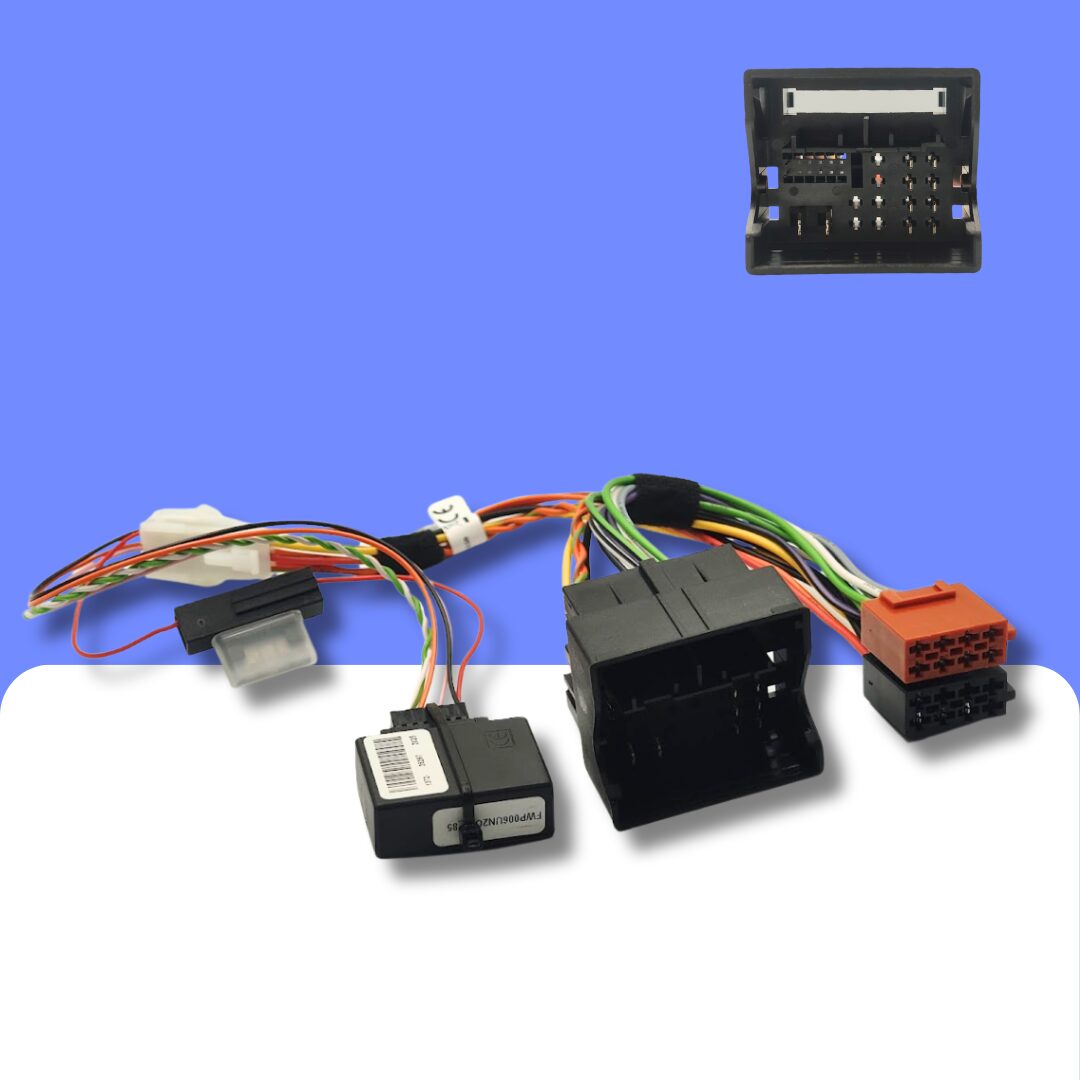

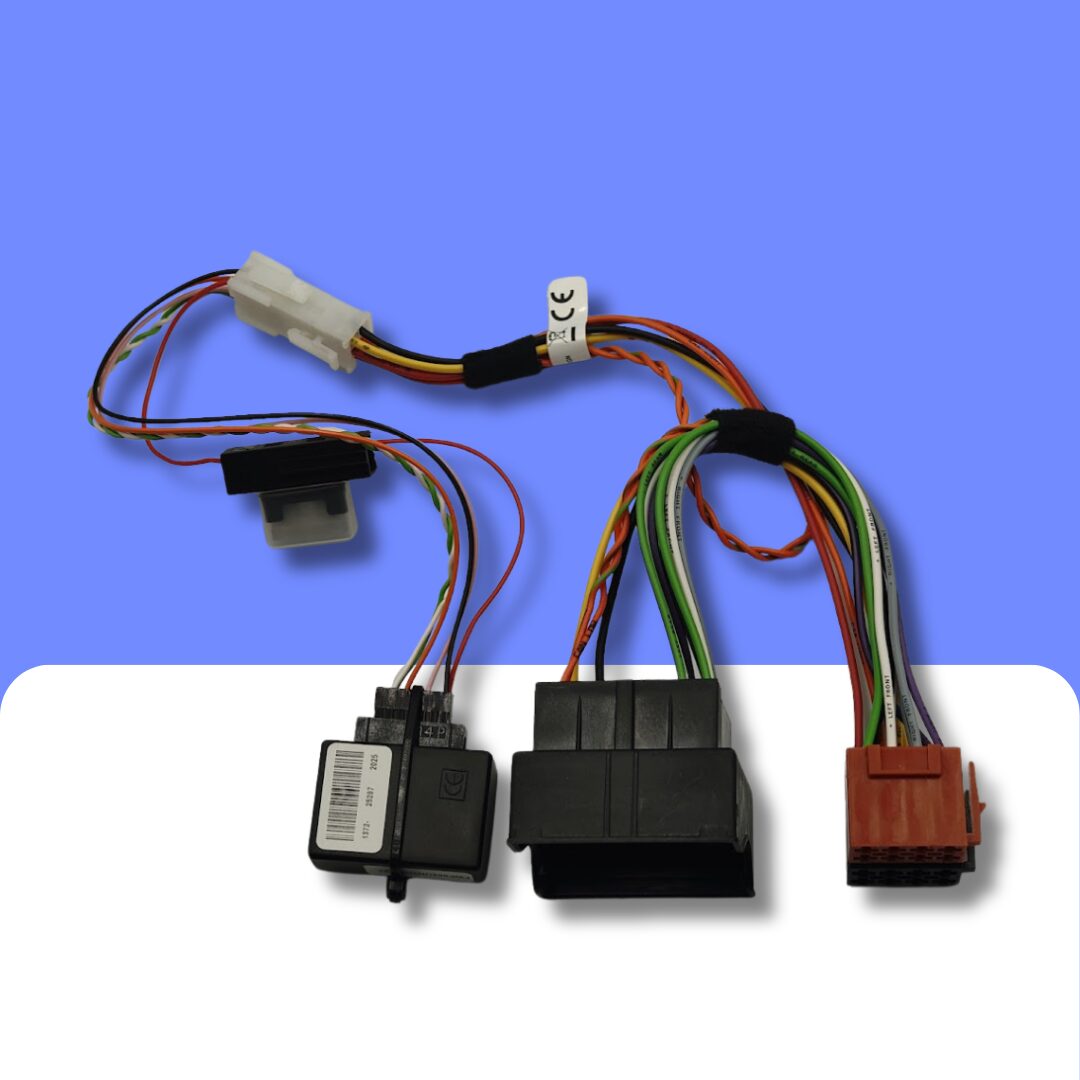

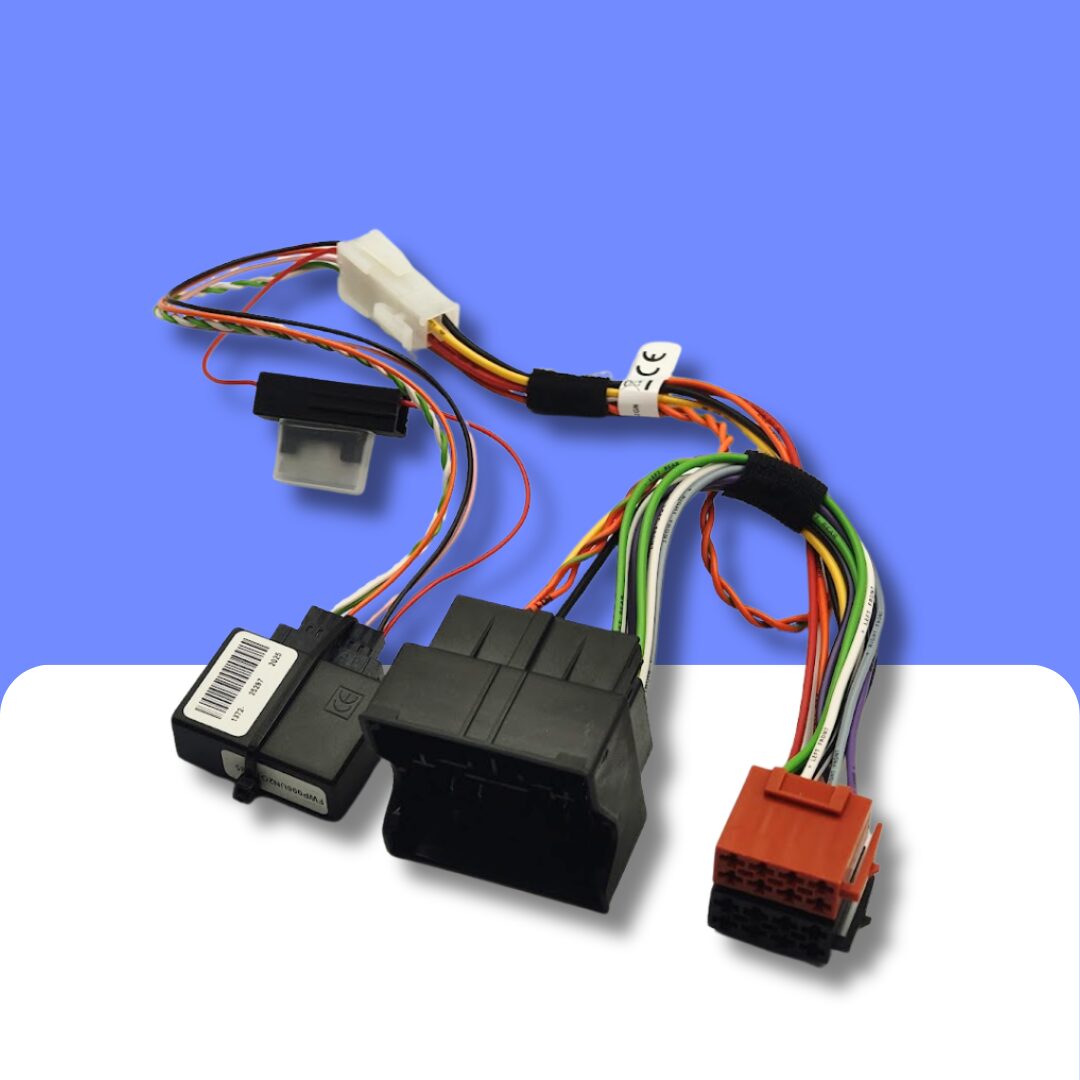

ISO adapter harness for Volkswagen vehicles with the new style quadlock connectors that have large power and ground terminals at the back of the radio.

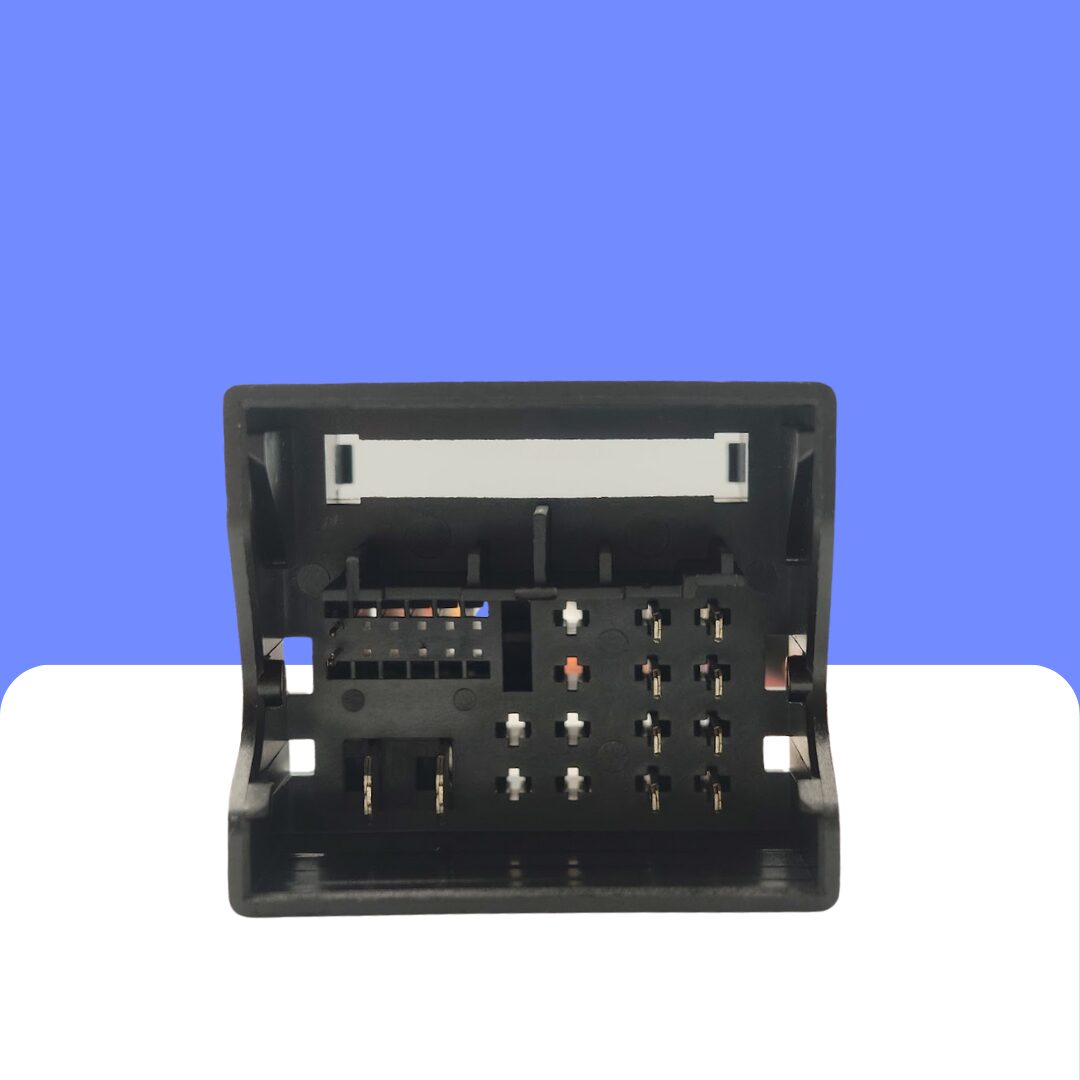

This adapter harness is designed to adapt from the original quadlock style connector in the dashboard to a standard aftermarket ISO connector to allow the fitting of a new radio.

This lead has a built in CANbus interface which provides a key present ignition power supply. A key present ignition supply will generate an ignition feed to turn the head unit on with the first position of the key, the interface will continue to give an ignition feed to the radio when the key is turned back to the off position, the ignition feed stops only when the key is then removed from the ignition barrel.

Seat:
Alhambra 2016 - 2020
Ibiza Mk4 2016 - 2017
Mii 2020
Toledo Mk4 2016 - 2020

Skoda:
Citigo 2020
Yeti 2015 - 2017

Volkswagen:
Amarok 2018 >
Beetle 2015 - 2019
Caddy 2015 - 2020
Golf Mk7 2012 - 2020
Jetta VI 2016 - 2018
CC 2016 - 2017
Scirocco 2015 - 2017
Sharan 2015 - 2022
Tiguan 2015 >
Transporter T6 2015 - 2019
Transporter T6.1 2019 >
Up! 2017 >
