Reverse Camera and SYNC 4 interface kit for Ford Transit built from 2024 onward. The camera is built into a replacement high level brake light and has AHD resolution suitable for use with the original SYNC 4 screen.. The vehicle does not require coding or programming after installation.

The harness adaptor has rectangular 54 pin type male and female connectors along with 6 pin LVDS connectors to connect into the original loom with a RCA Phono camera input to be connected to the camera. The adapter connects to the API module on the vehicle which on most vehicles is above the glove box. Please find instructions for this product here.

Suitable only for Ford Transits with SYNC 4 original 12 inch touch screen in car entertainment. It is not suitable for earlier vehicles with SYNC 3 or SYNC 2.5. Please see our guide on how to tell which SYNC version you have here.

Compatible with the following vehicles with SYNC 4 only:

Ford:
Transit (2024 Onward)

Camera features:

AHD 720p resolution
RCA video
Wide 170° viewing angle
Super CMOS sensor for high quality night video
Dust and waterproof IP67 protection rating
Optional Parking guidelines (fixed)
12v power supply

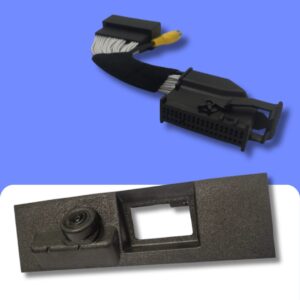

This kit includes the camera, built into a replacement high level brake light. It comes with power cables, a video and power cable extension to run the length of the vehicle and a adaptor interface to add it onto an original SYNC 4 head unit without having to code the vehicle.

While we strive to make the listing as accurate as possible, please check that the dimensions of your number plate light matches those shown as mid-lifespan changes or different body styles may have different sized lights.

Due to the way the camera protrudes from the high level brake light, this kit may not be suitable if you have a van fitted with a roof rack with a roller bar that sits close to the centre brake light.
