Reverse Camera input adaptor for Ford SYNC 1 systems with a 5" colour screen.

ONLY COMPATIBLE WITH SYNC 1 SYSTEMS WITH A COLOR SCREEN. Not suitable for Ford SYNC 1 version FORD NAV MFD LOW. If your car has navigation on the 5"SYNC screen, please remove the screen and check the build sticker and connections on the back before ordering.

PLEASE SEE OUR GUIDE TO IDENTIFYING YOUR SYNC SYSTEM HERE.

Enables connection of an aftermarket NTSC camera to the vehicles API module. The original Ford SYNC 1 screens are 5" in size and (on most vehicles) have the API module attached to the back of the screen with a 12 pin connection.

The Vehicle will need programming to enable the rear view camera function.

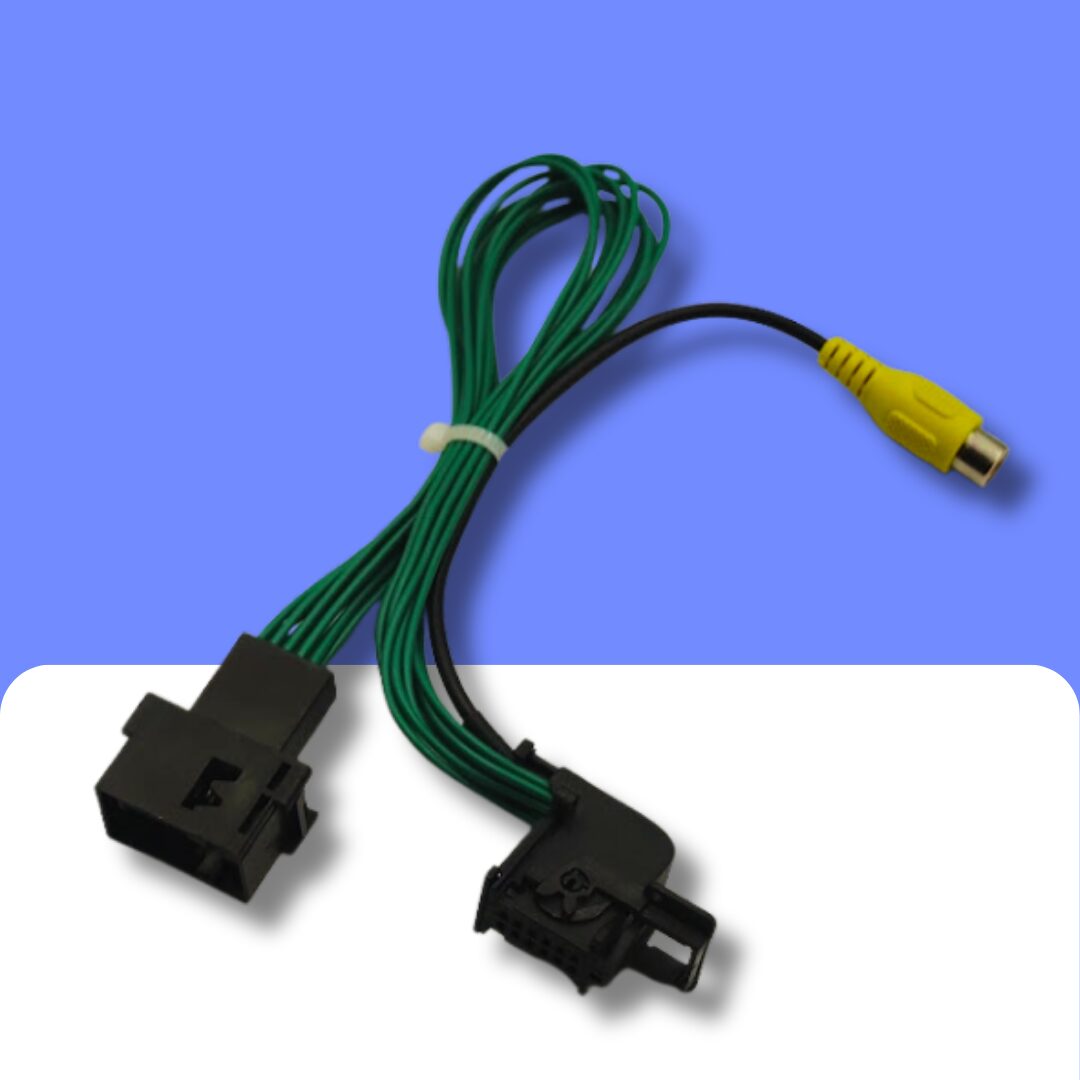

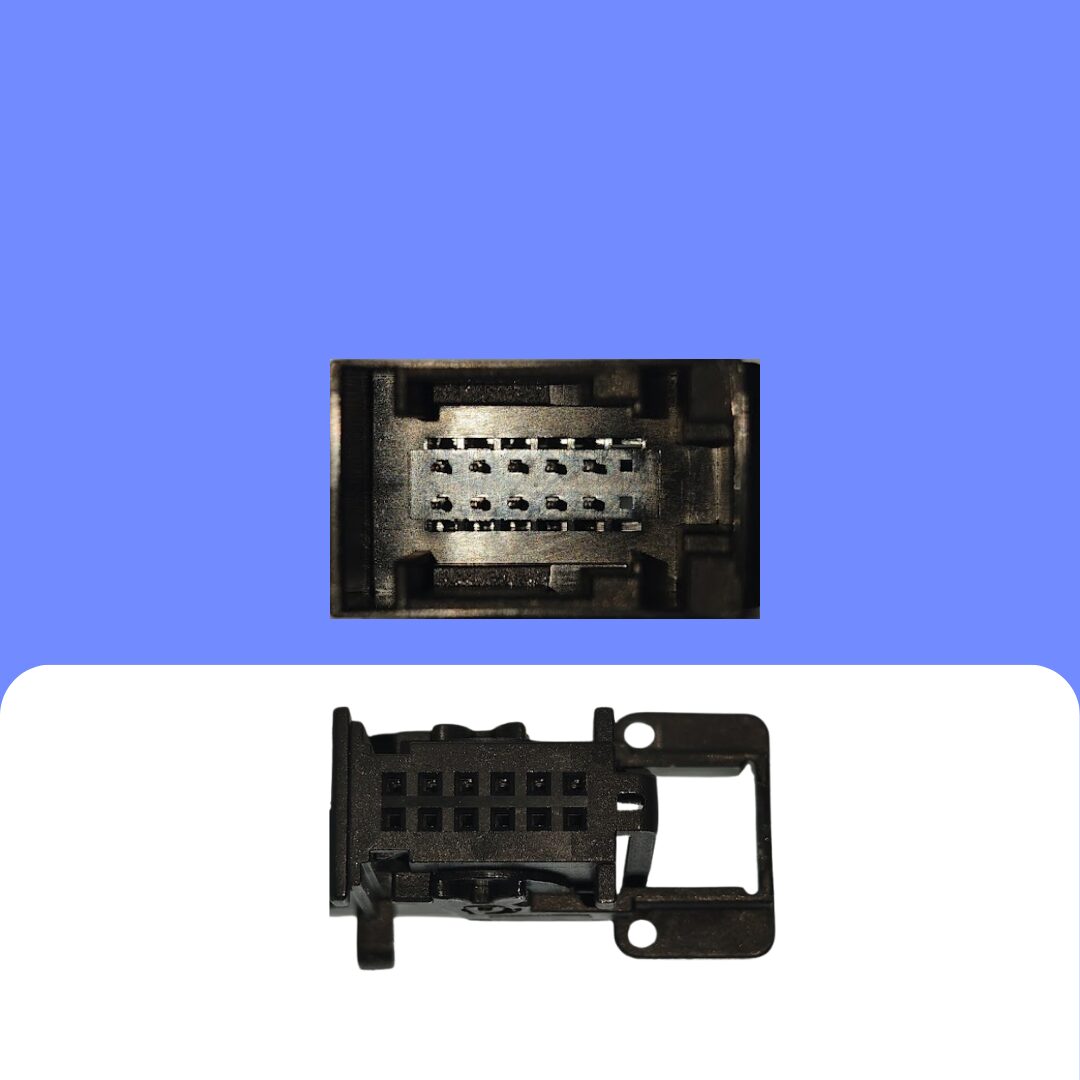

The adaptor has 12 pin male and female connectors on a pass through cable to connect to the API module and the original wiring harness with a RCA Phono camera input.

Suitable for the following Ford cars and vans with SYNC 1 (except models with NAV MFD LOW screens)

Ford:
B-Max (2012 - 2018)
C-Max (2010 - 2019)
Ecosport (2013 - 2018)
Fiesta Mk7 Facelift (2008 - 2018)
Focus Mk3 (2011 - 2017)
Ka+ (2016 - 2020)
Kuga (2013 - 2019)
Mondeo Mk5 (2015 - 2019)
Ranger (2011 - 2015)
Transit Connect (2014 - 2019)
Transit Courier (2014 - 2019)
Transit Custom (2013 - 2018)
Transit (2013 - 2018)

Please Note: Vehicle Coding required.
